- Audio & Video Connectors & Adapters, Raspberry Pi
Micro-HDMI (M) to HDMI-A (M) Cable 1M White
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
SKU: SWB04007 - Uncategorized

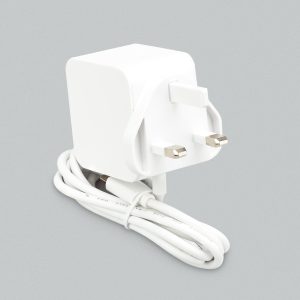

Official Raspberry Pi 27W USB-C Power Supply for Pi 5
Specification
Input voltage: 100 – 240 v.a.c
Input AC frequency: 50-60Hz
Output voltage: 5.1V
Output current: 5.0A
Output power: 25.5W
Average active efficiency: 89.0%
Efficiency at low load (10 %): 87.9%
No-load power consumption: 0.1W
Connector: USB-C
Cable: 1.2m 17AWG, white or black
SKU: SC1149
Raspberry Pi 5
Specification
Processor Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features: • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
₦11,000 – ₦145,800
Overview
Welcome to the latest generation of Raspberry Pi: the everything computer.
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a 2–3× increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “Southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality.
Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane
1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane
PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Weight | N/A |
---|---|
Dimensions | N/A |
Memory | 2GB, 4GB, 8GB |
Specification
Processor Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU,
with cryptography extensions, 512KB per-core L2 caches, and a
2MB shared L3 cache
Features: • VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM
(4GB and 8GB SKUs available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support
(requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals
(requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button
Related products
- RASPBERRY PI STORE
Raspberry Pi 4 Model B Retro Gaming Kit
0 out of 5(0)Our great value Raspberry Pi 4 Retro Gaming Kit is the best way to create your very own retro gaming console and includes everything you need (minus games – see below).
With everything in one box, you can be up and running in a matter of minutes. Just connect a screen, plug in the controllers, load your own game files (ROMs) and start shooting down 8-bit aliens with your friends!
SKU: n/a - RASPBERRY PI STORE
Argon ONE V2 Raspberry Pi 4 Case
0 out of 5(0)New V2 version with full-size HDMI ports and built-in infrared receiver!
The Argon ONE Case is one of our best-selling?Raspberry Pi 4??cases – and it just got even better with the new V2 version, which now features?full-size HDMI??ports and a built-in infrared receiver.
SKU: n/a - Displays, Raspberry Pi
Raspberry Pi 7″ touchscreen display
0 out of 5(0)Specification
Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.
The 800 x 480 display connects to Raspberry Pi via an adapter board that handles power and signal conversion. Only two connections to your Raspberry Pi are required: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for the Raspberry Pi Zero line.
Display size (diagonal):?7 inches
Display format:?800 (RGB)???480 pixels
Active area:?154.08mm???85.92mm
Touch panel: True multi-touch capacitive touch panel with up to 10 points of absolute
Surface treatment: Anti-glare
Colour configuration: RGB-stripe
Backlight type: LED B/L
SKU: SWB04006₦109,400₦133,200 - RASPBERRY PI STORE
IC RP2040 (RP2B2) T&R 500
0 out of 5(0)Specification
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264kB on-chip SRAM
- 2 ? UART, 2 ? SPI controllers, 2 ? I2C controllers, 16 ? PWM channels
- 1 ? USB 1.1 controller and PHY, with host and device support
- 8 ? Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8?5.5V DC
- Operating temperature -40?C to +85?C
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
SKU: SC0914(7)₦5,300
